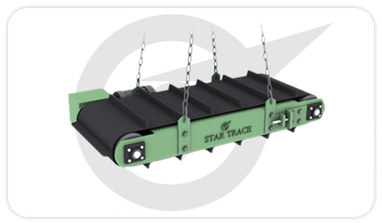

STAR TRACE's Industrial Over band Magnetic Separators have been developed to handle high volume product stream flows that exceed the limitations of standard permanent suspended magnets. These models are available in both, manual on/off or automatic, self cleaning system designs. Electrical Power Supplies to operate the magnets are also available and recommended to ensure proper electrical power is supplied to the magnet.

CONSTRUCTION:

Two U-section pieces are fixed on the Magnet by fastening ears and are supporting bearings of Drums. Drums are equipped with shafts mounted on removable hubs. All bearings equipped with stakes for tightening the belt. The belt is driven by a Reduction Gear Coupled to Electric Motor or Geared Motor by Vee- belts.

Magnet Unit:

The Magnet is made of High Intensity Strontium Ferrite Magnets and is guaranteed for the Magnetic Power throughout the life of installation. A Non - Magnetic Stainless steel Plate is provided to cover the poles of Magnet. There is no need for any electrical supply or maintenance.

Industrial Overband Magentic Separators ApplicationsTopˆ

• Coal Industries
• Abrasive Industries
• Chemical Industries
• Paper and Pulp Industries
• Ceramic Industries
• Rubber Industries
• Petroleum Industries
• Animal Feed Industries
• Recycling Industries
• Mineral Processing

Industrial Overband Magnetic Separators FeaturesTopˆ

• Permanent magnetic suspension separators are made with powerful Strontium Ferrite magnets.
• Special magnet features and options:
• 2-Pulley construction
• Totally-enclosed, removable dust-proof housings for self-cleaning magnets
• Heavy, wear-resistant manganese steel bottom plate
• Permanent magnet - no power required
• Most effective for removal of tramp iron from materials carried over conveyors/ vibratory feeders or inclined planes.
• Can be suspended for Longitudinal or Transversal cleaning over the conveyor belt.
• Available in widths from 16" to 90"
• Easy to install, without modifying existing lines
• In-line and cross-belt separators allow automatic discharge of collected tramp iron into suitable receptacles
• Rugged, 100% duty cycle design and construction
• Low maintenance, easy installation and operation
• Operates in hazardous environments
• High efficiency means energy cost savings
• Maintenance free
• Guaranteed performance
• Four point suspension
• Dust and rain protection
• Robust industrial Design
• Manufactured to customer specification

Industrial Overband Magentic Separators Specification:Topˆ

• Permanent Industrial Overband Magentic Separators are made with powerful Strontium Ferrite magnets and supplied for deep depth up to 300mm.
• Manufactured to suit conveyor width.

Industrial Overband Magnetic Separators Specification 1

DIMENSIONS AND TECHNICAL DATA
Type	Belt Width mm		Working distance mm	Weight kg	Drive KW	Overall dimensions
	Across	Inline				Length	Width	Height
OBMS-40/50-15	500	400	120-160	440	1,5	1380	1000	400
OBMS-40/70-15	650	400	120-160	540	1,5	1580	1000	400
OBMS-40/90-15	800	400	120-160	640	1,5	1780	1000	400
OBMS-40/110-15	1000	400	120-160	740	1,5	1980	1000	400
OBMS-60/50-20	500	650	170-220	640	1,5	1380	1200	400
OBMS-60/70-20	650	650	170-220	780	1,5	1580	1200	400
OBMS-60/90-20	800	650	170-220	920	1,5	1780	1200	400
OBMS-60/110-20	1000	650	170-220	1060	1,5	1980	1200	400
OBMS-60/130-20	1200	650	170-220	1220	1,5	2180	1200	400
OBMS-75/70-25	650	800	220-270	1200	2,2	1830	1380	500
OBMS-75/90-25	800	800	220-270	1340	2,2	2030	1380	500
OBMS-75/110-25	1000	800	220-270	1660	2,2	2230	1380	500
OBMS-75/130-25	1200	800	220-270	1800	2,2	2430	1380	500
OBMS-75/150-25	1400	800	220-270	1940	2,2	2630	1380	500
OBMS-95/70-30	650	1000	240-320	1430	2,2	1830	1580	500
OBMS-95/90-30	800	1000	240-320	1650	2,2	2030	1580	500
OBMS-95/110-30	1000	1000	240-320	1870	2,2	2230	1580	500
OBMS-95/130-30	1200	1000	240-320	2100	2,2	2430	1580	500
OBMS-95/150-30	1400	1000	240-320	2330	2,2	2630	1580	500
OBMS-115/90-35	800	1200	260-350	2270	3,0	2030	1780	500
OBMS-115/110-35	1000	1200	260-350	2250	3,0	2230	1780	500
OBMS-115/130-35	1200	1200	260-350	2570	3,0	2430	1780	500
OBMS-115/150-35	1400	1200	260-350	2900	3,0	2630	1780	500
OBMS-130/110-35	1000	1400	280-370	2580	3,0	2230	1980	500
OBMS-130/130-35	1200	1400	280-370	2950	3,0	2430	1980	500
OBMS-130/150-35	1400	1400	280-370	3340	3,0	2630	1980	500
OBMS-130/170-35	1600	1400	280-370	3750	3,0	2830	1980	500
OBMS-150/130-40	1200	1600	300-390	3400	3,0	2430	2180	500
OBMS-150/150-40	1400	1600	300-390	3840	3,0	2630	2180	500
OBMS-150-170/40	1600	1600	300-390	4310	3,0	2830	2180	500
OBMS-150-190/40	1800	1600	300-390	4810	3,0	3030	2180	500

Note:

1.Technical data specification subject to change.
2.Special Industrial Overband Magnetic Separators can be made on request, Please send us your technical data and application, required for our engineers to provide.

---

Industrial Overband Magnetic Separators Specification 2Topˆ

MAGNET DIMENSIONS
a	b	c	d	e	f
420	500	200	220	1110	470
420	700	200	220	1310	470
420	900	200	220	1510	470
420	1100	200	220	1710	470
620	500	200	220	1110	670
620	700	200	220	1310	670
620	900	200	220	1510	670
620	1100	200	220	1710	670
620	1300	200	220	1910	670
770	700	250	320	1450	830
770	900	250	320	1650	830
770	1100	250	320	1850	830
770	1300	250	320	2050	830
770	1500	250	320	2250	830
970	700	250	320	1450	1030
970	900	250	320	1650	1030
970	1100	250	320	1850	1030
970	1300	250	320	2050	1030
970	1500	250	320	2250	1030
1170	900	250	320	1650	1230
1170	1100	250	320	1850	1230
1170	1300	250	320	2050	1230
1170	1500	250	320	2250	1230
1370	1100	250	320	1850	1380
1370	1300	250	320	2050	1380
1370	1500	250	320	2250	1380
1370	1700	250	320	2450	1380
1520	1100	250	320	2050	1580
1520	1300	250	320	2250	1580
1520	1500	250	320	2450	1580
1520	1700	250	320	2650	1580

Note:

1.Technical data specification subject to change.
2.Special Industrial Overband Magnetic Separators can be made on request, Please send us your technical data and application, required for our engineers to provide.
